Shevan -AM100 Bluetooth Amplifier Board 50Wx2 +100W TPA3116D2 Power Amplifier 2.1 Channel Microphone Audio Module-A

Price: $40.11
(as of Jun 07, 2023 22:48:23 UTC – Details)

Shevan BT version: 5.1
BT transmission distance: 15m

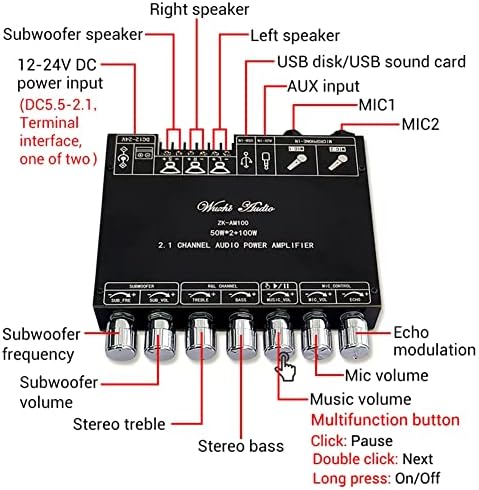

Audio input: BT+ AUX + USB disk + USB sound card + MIC
Audio output: Left channel 50W + right channel 50W + subwoofer 100W
Adaptive power supply: DC12-24V,≥8A (Do not connect to AC)
Adaptive speaker: Left and right channels 20-50W, 4-8Ω; subwoofer 20-100W, 3-8Ω
Dual volume adjustment:
1. Background music volume adjustment, with multifunction button (Click: pause, Double-click: , Long press: on/off)
2. MIC volume adjustment
Protection mechanism: Input anti-reverse connection, over temperature, over-current, short circuit, anti-static protection
Characteristic function:
Dual MIC input.
Support Wuzhi Audio APP. BT name, password setting, volume adjustment of prompt tone, on/off prompt tone, sleep music, firmware upgrade, etc.
Size: 134x135x24mm
Color: black
Material: plastic

Package Contents:

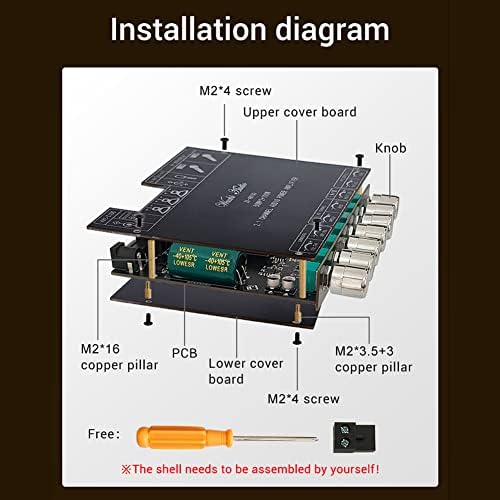

1 x Bluetooth Amplifier Board(with case)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Name: 50Wx2+100W microphone audio integrated machine
Model: -AM100
-AM100 is a microphone audio integrated machine, 2.1 channel BT power amplifier board 50W+50W+100W, supporting wireless microphone and wired microphone, using TPA3116D2 power amplifier chip, intelligent anti-howling, DSP reverberation, two-way microphone, adjustment.
Amplifier chip: TPA3116D2
