Shining 3D EinScan Rigil 3D Scanner All-in-one Wireless 25+25 Crossed Laser Lines, 7 Parallel Laser Lines, VCESL Infrared, Marker Free Blue Laser 3D Scanners, 0.04mm High Volumetric Accruacy

Price: $4,999.00
(as of Mar 06, 2026 19:21:11 UTC – Details)

Product description

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. EinScan Rigil 3D Scanner Merchant Video

1 MarkerFree Laser Scanning

2 VCSEL Infrared Scanning

3 5MP Texture Scanning

4 Automotive Application

5 Professional PC Software

1 EinScan Rigil v1.2 2 More Device Function 3 Outdoor 3D Scanning

EinScan Rigil Specification

Work Mode Wireless Standalone Mode, Wireless PC Mode, Wired PC Mode Scan Mode Laser HD Mode, IR Rapid Mode Light Source 25+25 crossed blue laser lines, 7 blue laser parallel lines, VCSEL infrared light Volumetric Accuracy Laser HD：Up to 0.04 + 0.06 mm/m, IR Rapid：Up to 0.1 + 0.4 mm/m Resolution Laser HD：0.05 ~ 10 mm, IR Rapid：0.2 ~ 10 mm Working Distance Laser HD：170 ~ 550 mm, IR Rapid：160 ~ 1500 mm Alignment Mode Laser HD：Global Markers / Markers / Features / Hybrid, IR Rapid：Global Markers / Markers / Features / Texture / Hybrid Camera Resolution 3D：2.3MP*2 1.3MP*2 , Texture：5MP Output Formats STL, OBJ, PLY, 3MF, ASC Laser Class Laser HD：Class II Operation Temperature -10℃ ~ 40℃ EinScan Rigil Hardware CPU: 8 core, 2.4GHz, 32GB eMMC+ 1TB SSD ROM, 32GB DDR5 RAM, 6.4”2K AMOLED Touch Screen Certifications CE, FCC, ROHS, WEEE, FDA, SRRC, IP50 Interface & Power Source USB Type-C , Battery: 5500mAh*2, Support 60W-PD3.0 Charger Recommended PC Configurations Processor: 13th Gen Intel Core i7-13700H or above; Graphics Card: NVIDIA GeForce RTX 3060 Laptop GPU or above VRAM: 8 GB or above; RAM: 64 GB or above, DDR5 dual-channel; Interface: USB 3.0; Operating System: Windows 11 Professional 22H2 (64-bit); Packing Size L*W*H: 51*36.5*21CM, Weight: 4.6KG

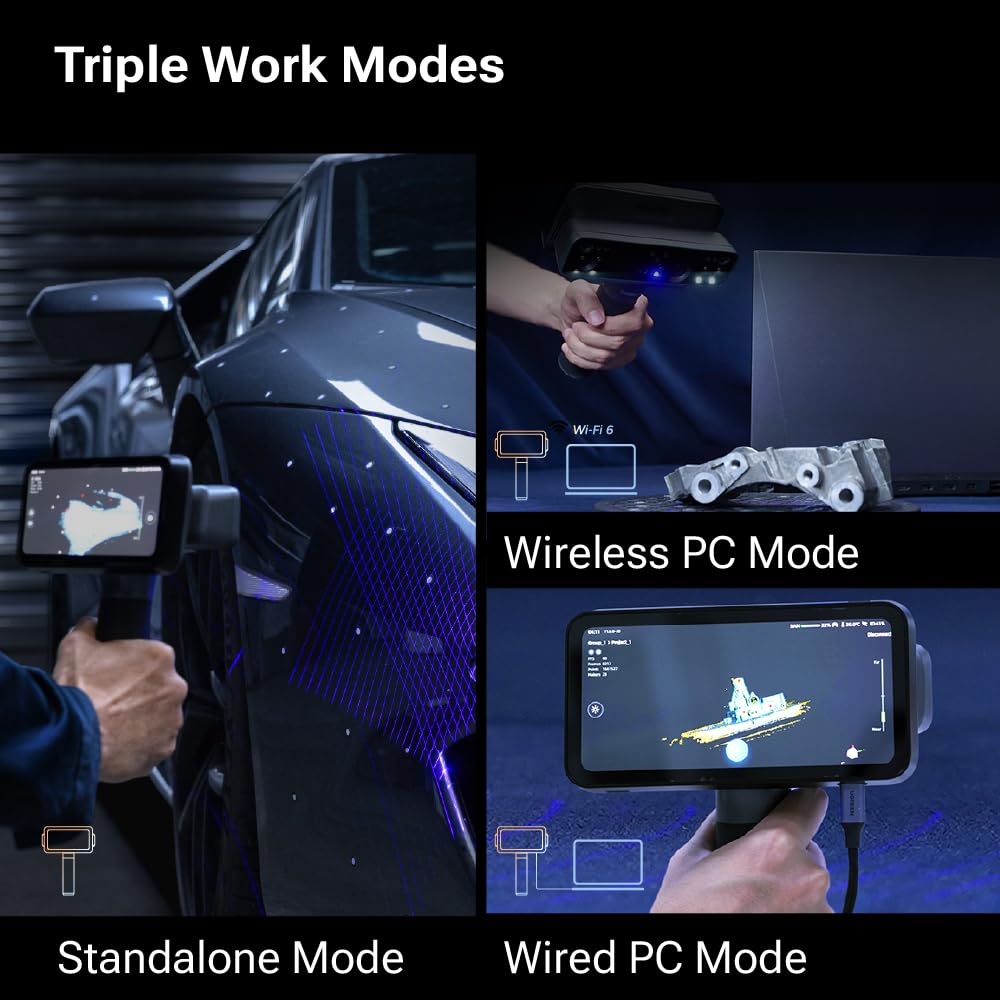

【Triple Work Modes】EinScan Rigil 3D scanner support 3 working modes for your different using enviroment. 1.Standalone Mode: No PC connection required, all scanning and processing tasks are completed directly on the hardware, delivering exceptional portability and ease of use. 2. Wireless PC Mode: Leveraging built-in Wi-Fi 6, this mode enables seamless wireless scanning and allows connection to a powerful computer, optimizing performance for complex tasks and large data volume. 3.Wired PC Mode: Maintaining availability and maximum scanning speed and data volume in complex network environments.
【High Volumetric Accuracy】 0.04mm+0.06 mm/m Volumetric Accuracy, EinScan Rigil approved by SHINING 3D Accracy Verification, With 20 years of experience in developing metrology 3D scanning technology, SHINING 3D maintains strict accuracy calibration standards and is dedicated to practicing and advocating truthful accuracy in 3D scanning to deliver reliable and consistent results.
【Multiple Light Source】25+25 Crossed Lines Blue laser, 7 Parellel Lines Blue Laser, EinScan Rigil support switch blue laser lines during Scanning. Superior adaptability to scan objects with dark and reflective metal surface without spray. VCSEL Infrared light-powered scanning solution for high efficiency and wide coverage of medium to large objects, with eye safe portrait scanning.
【Marker-Free Laser Scanning】EinScan Rigil features a special tracking algorithm, which provides marker-free blue laser scanning through a Laser + IR hybrid scan mode, currently available in EXScan Rigil software. This enables better efficiency than traditional marker-based laser scanning and better data quality than marker-free IR scanning.
【Professional PC Software】EXScan Rigil is dedicated PC software with rich editing functions for the EinScan Rigil scanner, supporting the full professional workflow from scanning and editing to export. Paired with the scanner, it offers stable, flexible, and high-quality scanning.
